MTHRBORD.STUDIO offers five free plugins: a compressor, two EQs, a phaser and a tape emulator. This article rounds up the download details and key features of every MTHRBORD.STUDIO free plugin.
Use it as a reference when picking which ones to grab.
1. MTHRBORD.STUDIO Free Plugin List
ACL2500 (Compressor)
ACL2500 is a VCA bus compressor that emulates a legendary American stereo bus compressor with discrete VCAs and a distinctive THRUST sidechain circuit. Gentle settings deliver smooth, transparent glue, while pushing it harder gives a punchy, aggressive response. Three knee settings let compression build up gradually instead of clamping down abruptly once the signal crosses the threshold.
ACL2500 Key Features
- THRESH: +20 to −20 dBu. An LED lights up while compressing
- ATTACK / RATIO / RELEASE: 7 positions each (attack 0.03–30 ms, ratio 1.5:1 to ∞, release 0.05–2 s). Turning RELEASE fully clockwise switches to VARIABLE (50 ms–3 s)
- L/R LINK: IND to 100%. Each side has its own detector and takes in the set percentage of the opposite side’s gain reduction
- SHAPE: HP/LP applied to the link, not the audio. Choose whether peaks or body move the stereo image
- KNEE / THRUST / TYPE: KNEE offers HARD, MED and SOFT. THRUST tilts the detector to reduce low-end bus pumping. TYPE switches between NEW (feed-forward) and OLD (feedback)
- MIX / BLEND: X crossfades between dry and compressed signal; II adds the compressed signal underneath the full dry signal for parallel compression
- OUTPUT: Auto make-up gain that follows THRESH and RATIO. Set to MANUAL to adjust with GAIN (0 to +24 dB). IN turns compression off without clicks
- VU meter: Reproduces the needle movement of the hardware. METER switches between GR, OUT and IN
- DISPLAY: Opens a screen with a draggable transfer curve, 4 seconds of input/output/gain-reduction history and peak meters
- Other: Zero latency, stereo/mono support, 12 factory presets (user presets saved as text files), window resizable from half to double size, free to use forever

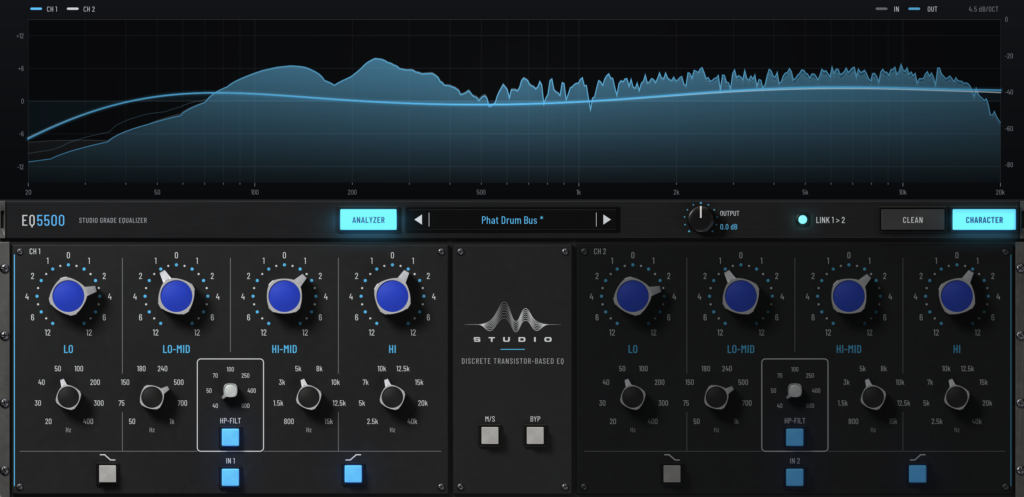

EQ5500 (EQ)
EQ5500 is a discrete-transistor EQ that emulates a legendary American EQ design built around op-amps and a distinctive Proportional-Q circuit. With Proportional-Q, the filter bandwidth narrows as you boost or cut more. Subtle settings sound smooth and musical, while higher gain settings become tight and aggressive.
EQ5500 Key Features
- GAIN: 21 steps from −12 to +12 dB. Q is linked to gain
- FREQ: 8 detents on each of the LO, LO-MID, HI-MID and HI bands
- SHELF: The LO and HI bands can switch between bell and shelf
- HP-FILT: 40–600 Hz, 12 dB/oct. Placed before each band and stays active even when IN is off
- IN 1 / IN 2: Turn the band section on/off per channel
- M/S / BYP: In M/S, channel 1 becomes Mid and channel 2 becomes Side. BYP is a hard-wired bypass
- LINK 1 > 2: The right channel follows the left channel
- CLEAN / CHARACTER: CLEAN uses one measured channel on both sides. CHARACTER reproduces the slight left/right differences of the hardware unit
- Other: Runs internally at 176.4 kHz or higher, mono/stereo support, presets (user presets saved as text files), free to use forever
EQP-1A (EQ)
EQP-1A is a tube EQ rebuilt with advanced circuit modeling from recordings and measurements of a real vintage Pultec EQP-1A. Every knob, switch and boost/attenuate setting was run through the hardware and analyzed, reproducing not just the frequency response but also the subtle imperfections unique to the hardware. It also recreates the same boost/attenuate interaction as the original, such as boosting and cutting the same low frequency to make the low end bigger without muddiness.
EQP-1A Key Features
- LOW FREQUENCY: CPS 20, 30, 60, 100 Hz, BOOST (shelf 0–13.5 dB), ATTEN (shelf 0–17.5 dB)
- HIGH FREQUENCY: KCS 3, 4, 5, 8, 10, 12, 16 kHz, BOOST (peak 0–18 dB), BANDWIDTH (sharp to broad)
- HIGH ATTEN: ATTEN SEL 5, 10, 20 kHz, ATTEN (shelf 0–16 dB)
- IN: Turns the EQ on/off
- Lamp: Glows with the input level and goes dark when the EQ is off
- Rotary switches: CPS, KCS and ATTEN SEL have 4, 7 and 3 steps, just like the hardware
- Other: Stereo (the model runs on each channel), factory and user presets, free to use forever
SLUSH3R (Phaser)
SLUSH3R is a free barberpole phaser built for plunderphonics, vaporwave and slushwave. It is designed so you get an instant slushy sound just by slowly turning the RATE knob. The two sweeps can be used together or individually.
SLUSH3R Key Features
- Barberpole sweep: A sweep that rises or falls endlessly
- Sweep 1 (BIG SLUSH): RATE, FEEDBACK and MIX. Turn RATE right to rise and left to fall; it is slowest near the center
- Sweep 2 (SURGICAL SLUSH): A sweep fixed to a 2-octave width, controlled with an XY pad. Left/right moves the band between 40 Hz and 16 kHz; up/down sets resonance. Includes SPEED and MIX
- Display: Shows both sweeps in real time, color-coded teal for Sweep 1 and orange for Sweep 2
- Other: Zero latency, bit-clean when bypassed or with everything off, all controls smoothed for zipper-free automation, free to use forever
VHS3R (Tape Emulator)
VHS3R is a free VHS tape emulator that makes your tracks sound as if they were recorded to VHS. It rebuilds the signal path stage by stage, from the recording preamp and magnetic tape to transport instability and the playback circuit, and each stage can be switched on or off individually.
VHS3R Key Features
- MACHINE: Switch between two decks (VHS / BETAMAX)
- WOW / FLUTTER / DROPOUT: WOW is slow wobble; FLUTTER is faster trembling on top of it. DROPOUT sets how often the audio drops out, from slight dips to complete mutes
- TAPE AGE: Choose between new tape and old tape with darker highs and its own noise
- PREAMP / NOISE / TONE: PREAMP drives the recording stage. NOISE selects HUM (power supply and motor) or HISS (broadband and brighter). TONE turns the playback effect on/off
- SQUASH: The deck’s automatic level control condensed into a single compression knob. Low settings add cohesion; high settings pump
- Section switches: The LEDs above the knobs act as switches, and a section switched off is fully bypassed
- INPUT / OUTPUT / MIX: INPUT and OUTPUT are adjusted in dB. MIX blends in the dry signal with delay compensation
- Other: Mono/stereo support, all controls smoothed, free to use forever
Samples Used in the Video | Splice Sounds
- BOS_DUS_110_Keys_Piano_Loop_Morningwalks_Dry_D#
- DSC__110_drum_loop_drumsclaps_fever_dry
2. How to Install and Activate MTHRBORD.STUDIO Plugins
Click “Download free” on the official product page and enter your email address. You can then install and activate the plugin using the license key and download link sent to you.
- [Free] MTHRBORD.STUDIO ACL2500 – Stereo bus compressor with discrete VCAs and a THRUST sidechain circuit
- [Free] MTHRBORD.STUDIO EQ5500 – EQ with op-amps and a distinctive Proportional-Q circuit
- [Free] MTHRBORD.STUDIO EQP-1A – Tube EQ measured and modeled from a Pultec EQP-1A
- [Free] MTHRBORD.STUDIO SLUSH3R – Barberpole phaser that rises and falls endlessly
- [Free] MTHRBORD.STUDIO VHS3R – Tape emulator that recreates the texture of VHS
Summary
That wraps up the free plugin offers from MTHRBORD.STUDIO: the ACL2500 bus compressor, the EQ5500 and EQP-1A EQs, the SLUSH3R barberpole phaser and the VHS3R tape emulator, all free to use forever.
