PhaseCvlt has just released AUGVR as a free download — a real-time audio analysis plugin that bundles six visualization modes and full broadcast-grade LUFS metering into a single zero-latency tool. Because AUGVR applies absolutely no coloration to the signal, it is safe to sit on any track, bus, or even the master, and it gives you a remarkably deep look at what your mix is actually doing. This article covers what makes AUGVR worth grabbing, its standout features, and how to download it for free.
What is PhaseCvlt AUGVR?
AUGVR is a zero-latency, color-free audio analyzer that unifies six visualization modes with a full-featured LUFS meter. You can insert it on tracks, buses, or the master, and it simultaneously analyzes frequency content, stereo image, loudness, phase correlation, and waveform shape at up to 60 fps without touching the underlying audio. Any moment can be frozen, rotated, zoomed, and scrubbed for detailed inspection, and the window is resizable from 990×600 all the way up to 4096×2560. Window size and settings are stored per DAW session, so your layout travels with each project.
Key Features

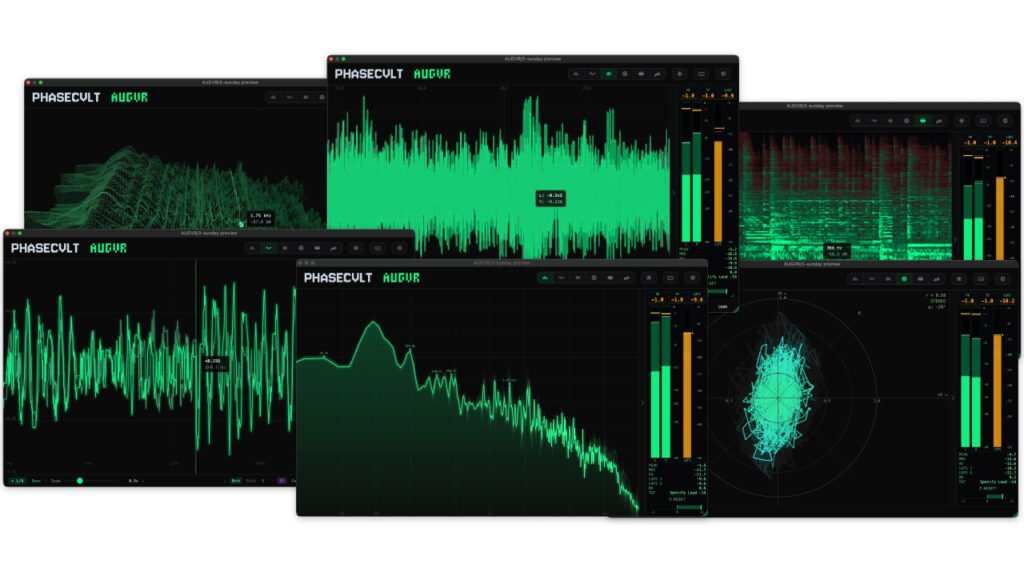

- Six visualization modes: Spectrum, Oscilloscope, Waveform, Lissajous, Spectrogram, and 3D Waterfall
- Full LUFS metering compliant with ITU-R BS.1770-4 and EBU R128 — Momentary 400 ms, Short-Term 3 s, Integrated + Peak, True Peak, with a -14 LUFS reference line
- Tempo-synced oscilloscope (1/16 to 32 bars, triplet and dotted support, 4 trigger modes, up to 10× vertical zoom, 16,384-sample stereo buffer)
- Auto peak detection on the spectrum plus click-to-place frequency pin markers with peak snap
- Sidechain input overlaid in a separate color on the oscilloscope for phase, timing, and transient comparison
- L / R / Both / Split oscilloscope channel modes
- Freeze & Zoom works across all six visualization modes for frame-accurate inspection
- Seven color themes (Red / Green / Yellow / Blue / White / Cyberpunk / Purple) plus a six-slot custom palette (Main / Dark / Light / Dim / Clip / Sidechain)
- GUI resizable from 990×600 to 4096×2560, frame rate adjustable 12–60 fps
- Zero latency with no coloration — safe on the master bus
How to Download AUGVR for Free
Head to the official product page and click the Download button. You’ll be asked to submit your email address, and a download link will arrive shortly after. Installation is straightforward on both Windows and macOS, and the plugin is available in common formats so you can drop it straight into your DAW of choice.
▶︎ Download AUGVR free from PhaseCvlt
AUGVR is a rare free plugin that actually has a place on a pro metering chain — the combination of six visualizers, broadcast-spec LUFS, a tempo-synced oscilloscope, and genuine zero-latency operation means you can keep it running from tracking through final master without paying the usual CPU or coloration tax. Grab it while the free download is live and give your ears a second opinion they can trust.
